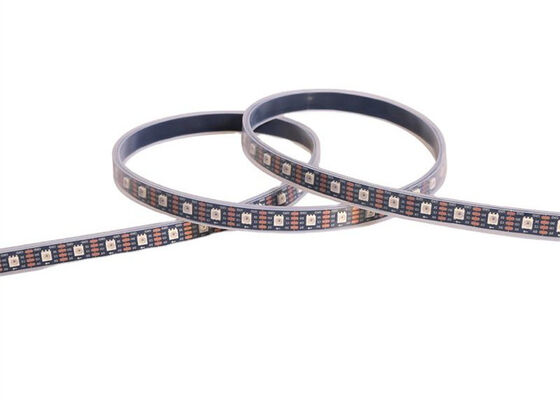

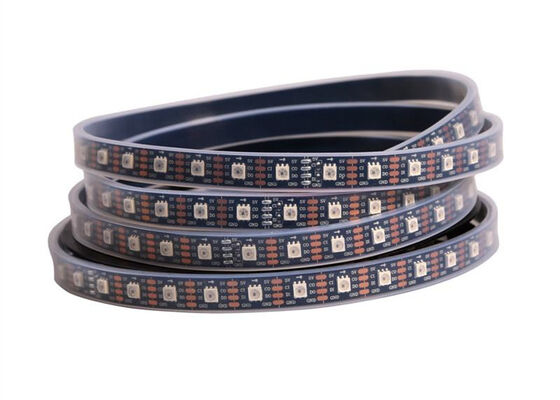

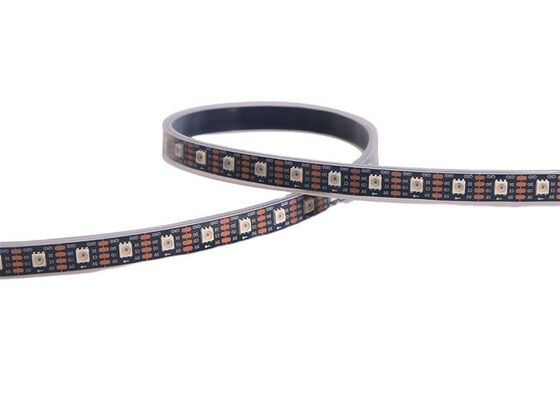

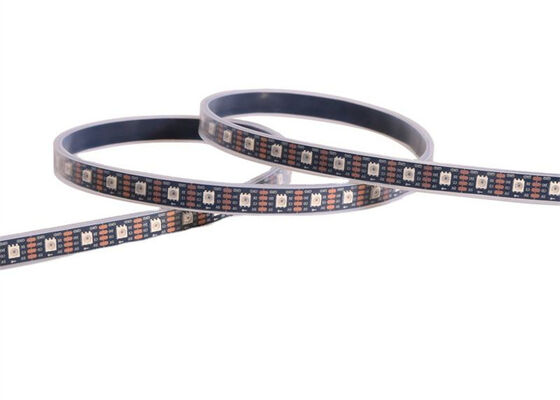

Waterproofed SK9822/APA102/APA102c RGB LED Strip Bulk 60LEDs/M Addressable Smart Strip Lights Landscape DC5V

Waterproofed SK9822/APA102/APA102c RGB LED Strip Bulk 60LEDs/M Addressable Smart Strip Lights Landscape DC5V

Production description,

This flexible RGB LED strips using the SK9822 chipset with HDR capabilities. They are powered by 5V and driven by a clock and data line. These are compatible with APA102s.Available in pixel densities of 30, 60, or 144 pixels per meter.
These LED strips come either with an adhesive tape back (IP20), or sealed in waterproof flexible silicone tubes to protect against the elements (IP67). They can be easily cut to any length, and have solder tabs between every LED.

Product: SK9822 / APA102 / APA102c Addressable 60leds/m Rgb LED Strip bulk
Descrtiption: APA102, 60led, 60IC Buit in, 10mm PCB, DC5V, 14.4w, Grey 256, 5m/roll
Size IP20: 5000*10*2.5(mm)
Size IP65: 5000*10*4.0(mm)
Size IP68: 5000*12*4.0(mm)

Specifications ( 1 meter LED Strip ):
LED Chip: SMD5050 RGB LED Chip
IC Chip: APA102 (IC built-in 5050 RGB LED chip)
LED Quantity: 30 leds/m ,60 leds/m,1440 leds/m
Input Voltage: DC5V
Watts:14.4 w/m
IP Rate: IP20 / IP65 / IP67 / IP68
PCB: 10mm width, white or black PCB
View angle: 120°
Standard Reel Lenght: 5 meters/roll, also can be customized
Operating temperature: -20° to +40°
Storage temperature: -40° to +60°
Color: RGB full color
Color temperature: 2800K-10000K
CRI: RA80
Lumen: 45 lm(R), 120 lm(G), 45 lm(B), 540 lm(W), 540 lm(WW),
Life: 50000hours
Note: the above optical parameters are only FYI, please indicate clearly when ordering.

About APA102 LED Strips:
The features of Addressable didital rgb m one roll APA102 60LEDs/m Smart led pixel strip apa102 5050
1) Control IC included,supporting numerous color-change effects
2) Absolutely addressable,each IC built inside RGB LED
3) Each IC control one leds
4) APA102 have 4 Wire input and output : Data ,Clock ,GND ,Anode, build in ic, double signal .
5) Grey scale 256, 256(Red)*256(Green)*256(Blue)=16777216 colors that APA102 LED can change. Keep LED show smooth color effect when changing color.

Application,
1) City skyline lighting villas advertising wall signs Christmas ( , , decorative landscape)
2) Irregular design of body decoration (shopping malls, hotels, nightclubs, polygonal wall KTV establishments ceiling cavity design)
3) Public lighting lighting (schools, libraries, hospitals, airports, subway stations, railway stations)
4) Furniture dark groove trim (door, bar, wine cabinet, wardrobe, TV cabinets, etc.)
5) Automotive beauty (body, underbody, wheelbarrow balanced car, etc.)

Package,

FAQ

Q: What are the best selling products in Phensonlighting?

A: LED Strip; pixel lamps ;high power lights; NEON Tube; LED Chip;Controllers;Power supply.

Q:What is the main market for Phensonlighting?

A: We are selling more to EU and north America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new LED technology. We are also optimistic about the markets for other American and Asian regions.

Q: What is Phensonlighting lead time?

A: Usually we ship orders in 5-7 days, But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.

Q:Can Phensonlighting do custom assembly or offer OEM product?

A:Witop has gained a lot of experience on OEM assembly of LED strip lighting. The strips can have different size, layout, customer logos and labels. We also want to apply the experience to LED luminaires as we have good design and engineering team.

Q:Do you have warranty for products?

A:Yes, we have 3-5years warranty for different kinds of products.
