| Housing Material: | PC, Copper | Wire cross section: | 18-22AWG |
|---|---|---|---|
| Wire gauge: | 0.35mm²-0.75mm² | Application: | Exhibition lighting City lighting Hotel lighting |
| Model Number: | D2 Quick Splice Wire Connector | Lead time: | 1-3days |
| Brand: | Phenson | Color: | Black |

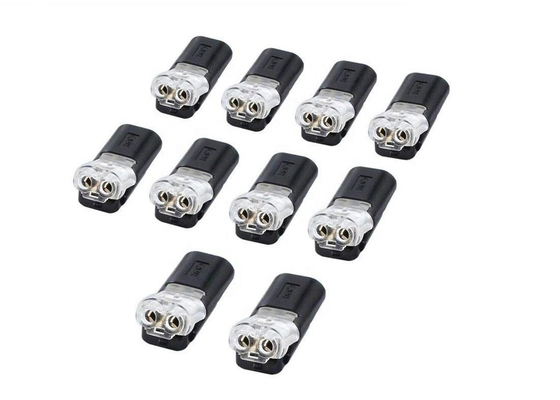

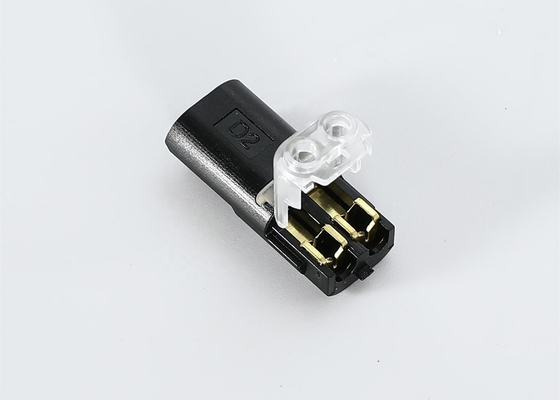

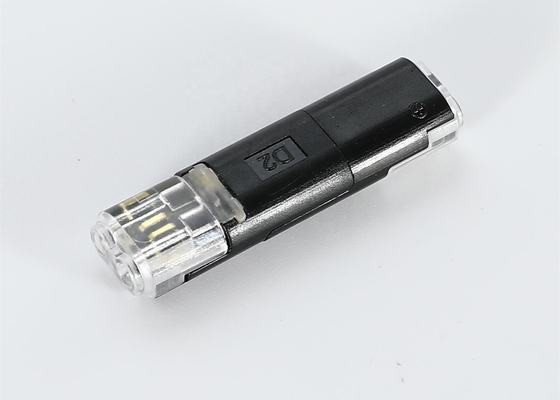

LED Stripping-Free Terminal Blocks Quick Wiring Butt Joints and Solder-Free D2 Butt Terminals Connectors
Product Specification,
| Product Name: | D2 Quick Connector | Material: | Polycarbonate + Copper |
| Rated Voltage: | <300V | Rated Current: | <10A |
| Wire Connection Range: | Soft Wire Only | Operating Temperature: | -10°C to 45°C |
| Wire Cross-section: | 0.3-0.75mm² | Wire Diameter: | 1.6-2.1mm |
The main features for the wire terminal connector (DIY Electrical Connection Solution)
1.Tool-Simple Assembly
Easily crimp wires using only pliers—no wire strippers or electrical tape required.
2.Flexible Wire Length
Eliminates the constraints of pre-fixed connectors (e.g., DC/JST/pin connectors), allowing custom wire lengths to fit your project layout.
3.Plug-and-Play Design
Enables quick disconnection for maintenance or equipment replacement without rewiring.
4.Universal Application
Ideal for DIY electrical setups, empowering users to focus on equipment placement rather than wire length limitations.
Application:
Custom electronics projects, prototyping, and repairs where adjustable wiring is critical.
The drawing of D2 connector ,
Workable wire type :18-22AWG
